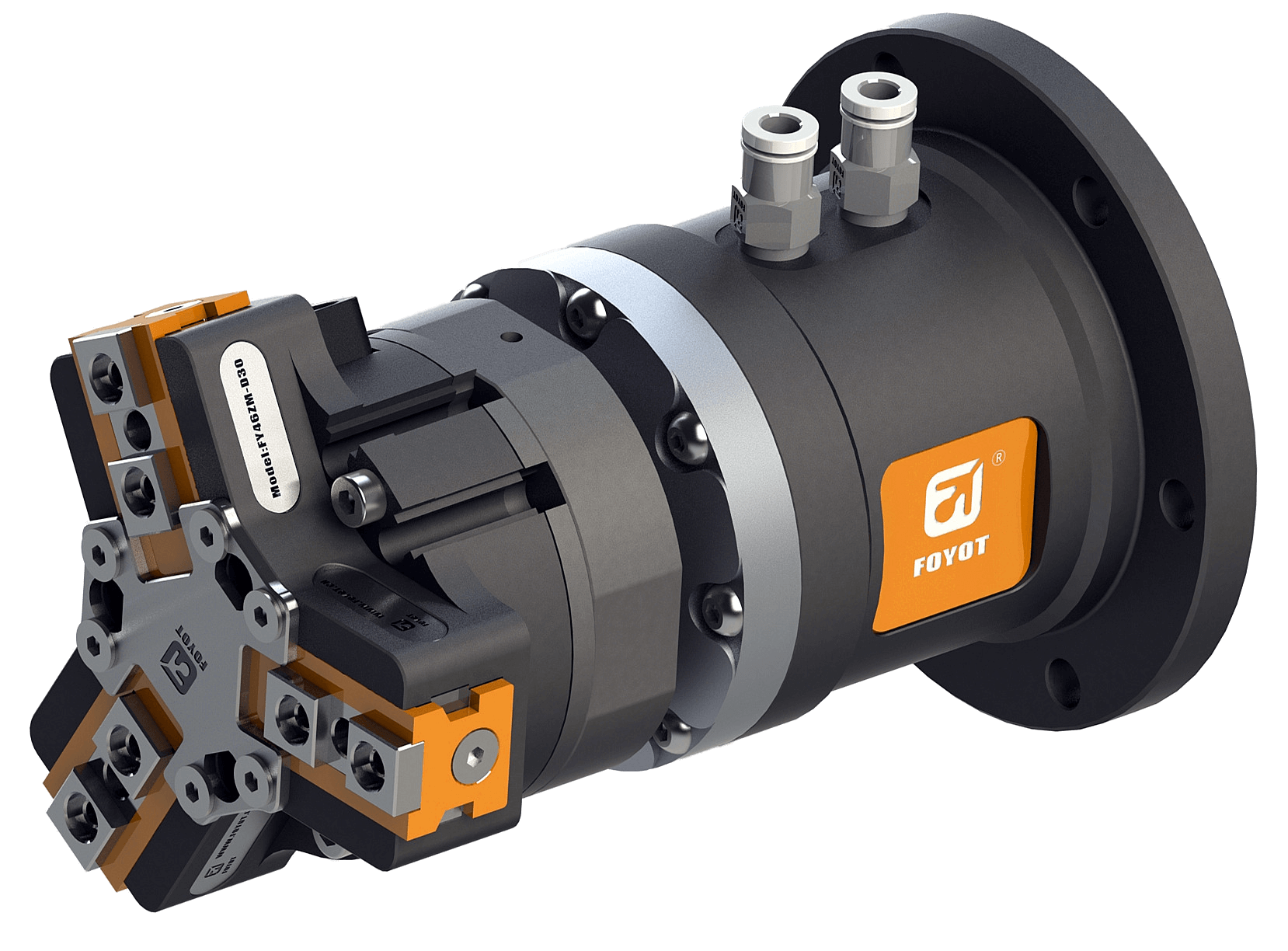

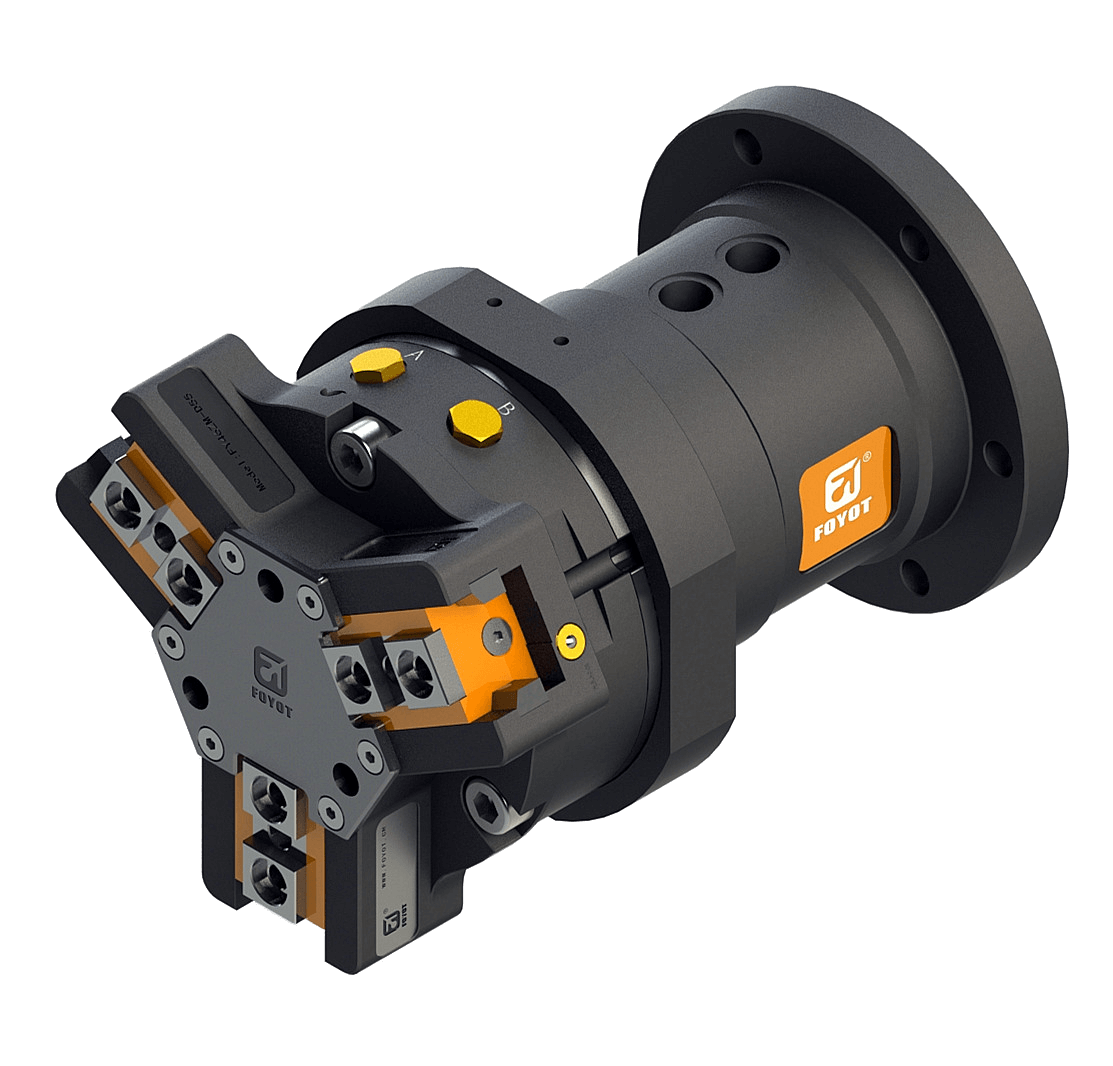

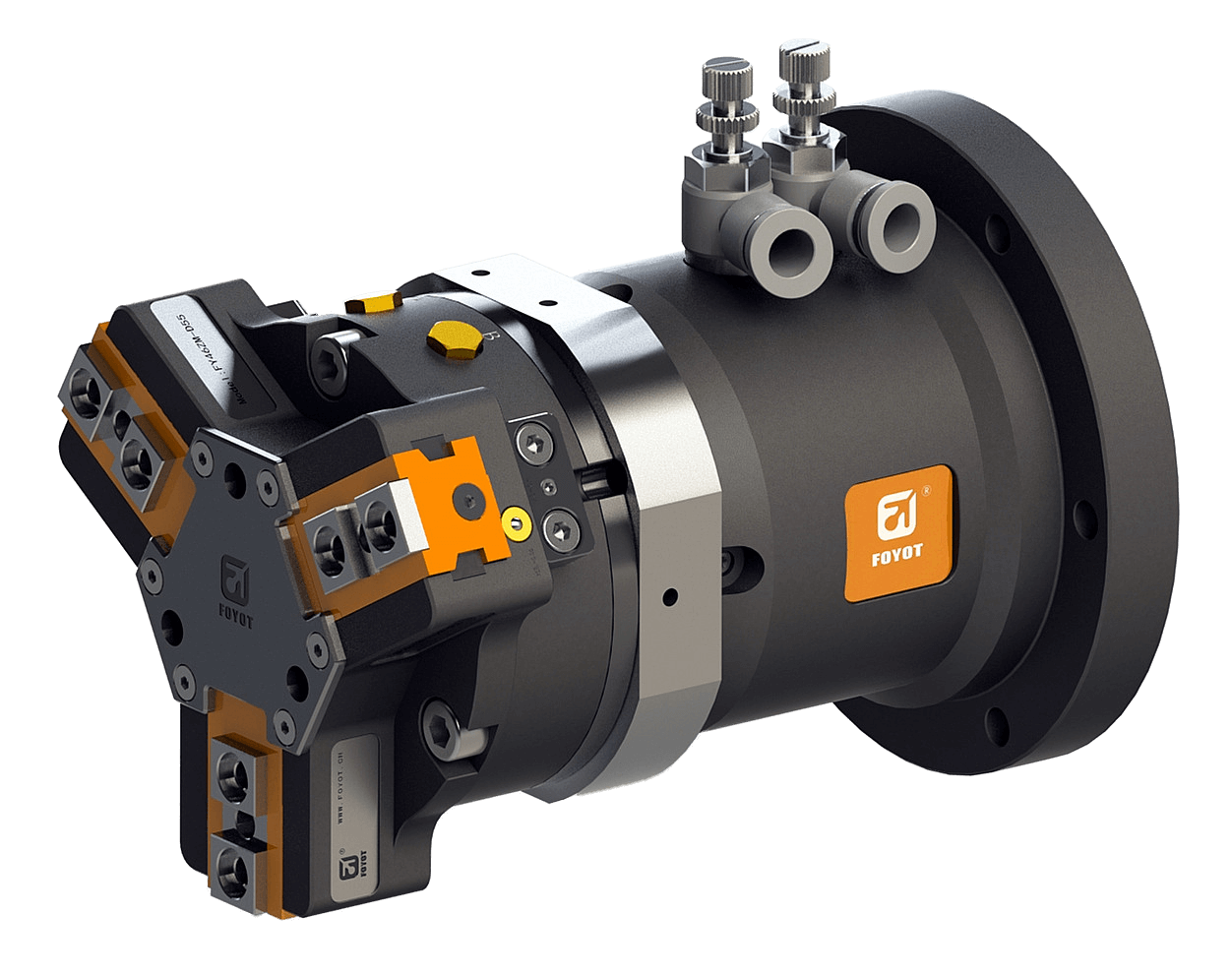

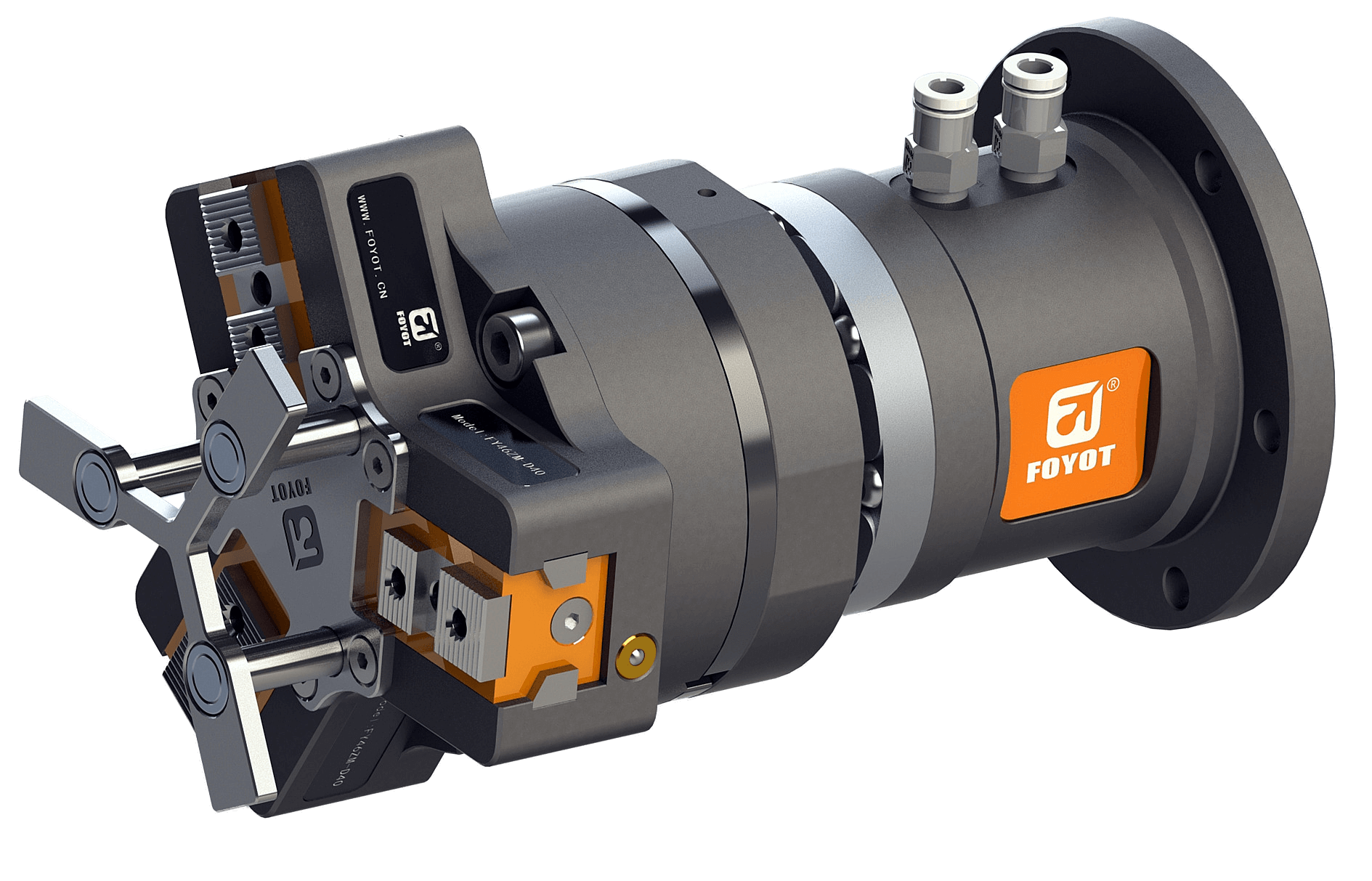

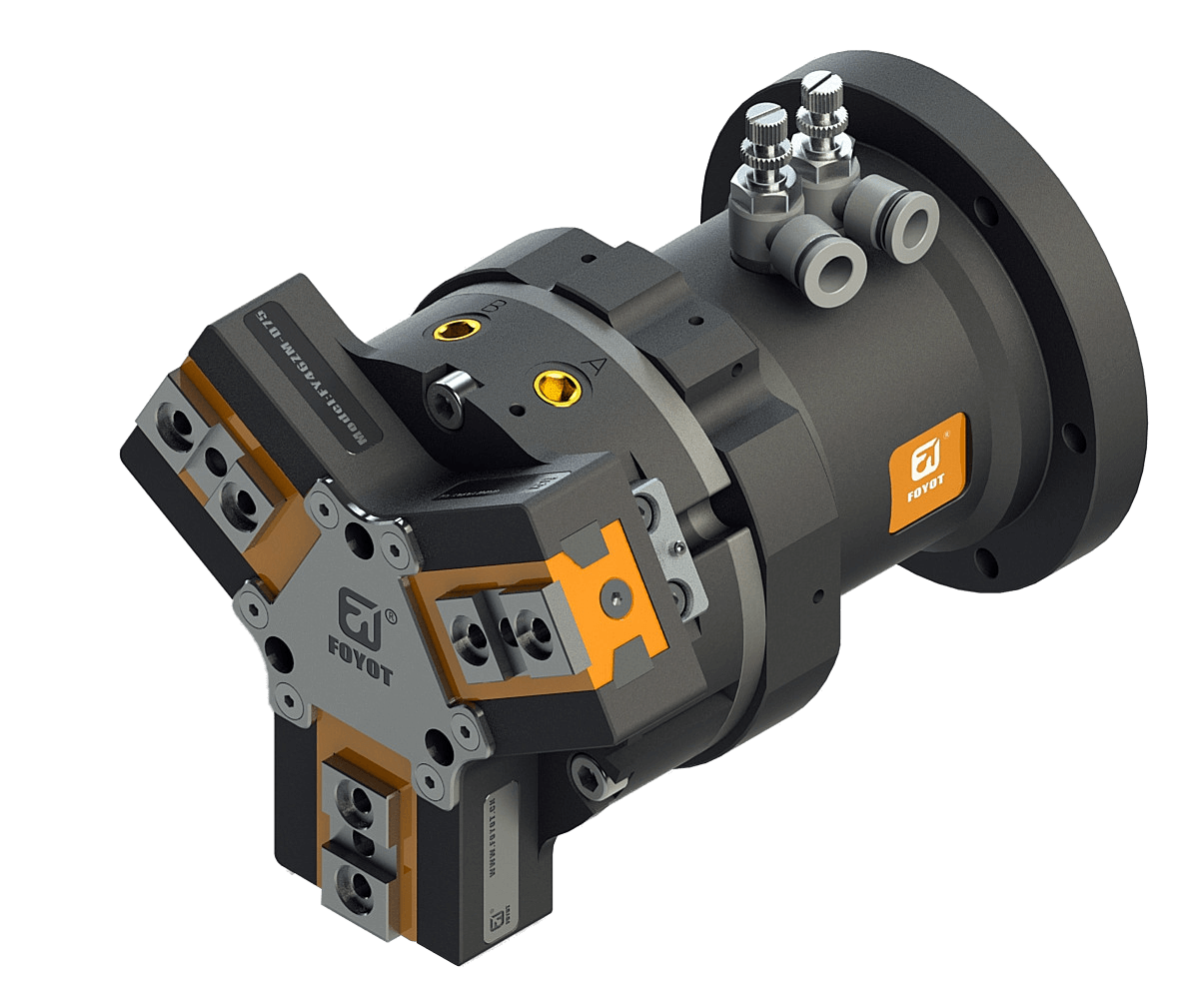

名稱：氣動平行三爪

Name:Pneumatic parallel three claws

型號(Mode I):FY46ZM-D30

P:空氣壓力P:Air Pressure(bar)

L:到作用點距離L:Exertion Length(mm)

開閉範圍(Stoke):8mm

産品重量(Veight):0.25kg

最大附件長度(Max.length attach):50mm

配管連接口(Fitting size):M5-6H

理論夾持力-開(Gripping force:Open)::425.76N

理論夾持力-閉（Gripping force:Close:370.8N

開閉時i間(Closeing/Opening time):0.01/0.01sec

重複精度（Repeat accuracy):0.01mm

連續使用次數(Continuation usage amount):60

使用氣壓(Operating pressure):3-8bar

周圍溫度(Ambient temperature.:-5to60℃(-10to130℃)

潤滑Lubrication:不需要(Needless)

根據EC60529標準安全防護：P64

Safety protection according to IEC60529 standard:IP64

所有數據在7Bar時測量(All data were measured at7Bar)

重複精度：連續動作100次以後的檢測值

After 100 consecutive strokes to end positions
